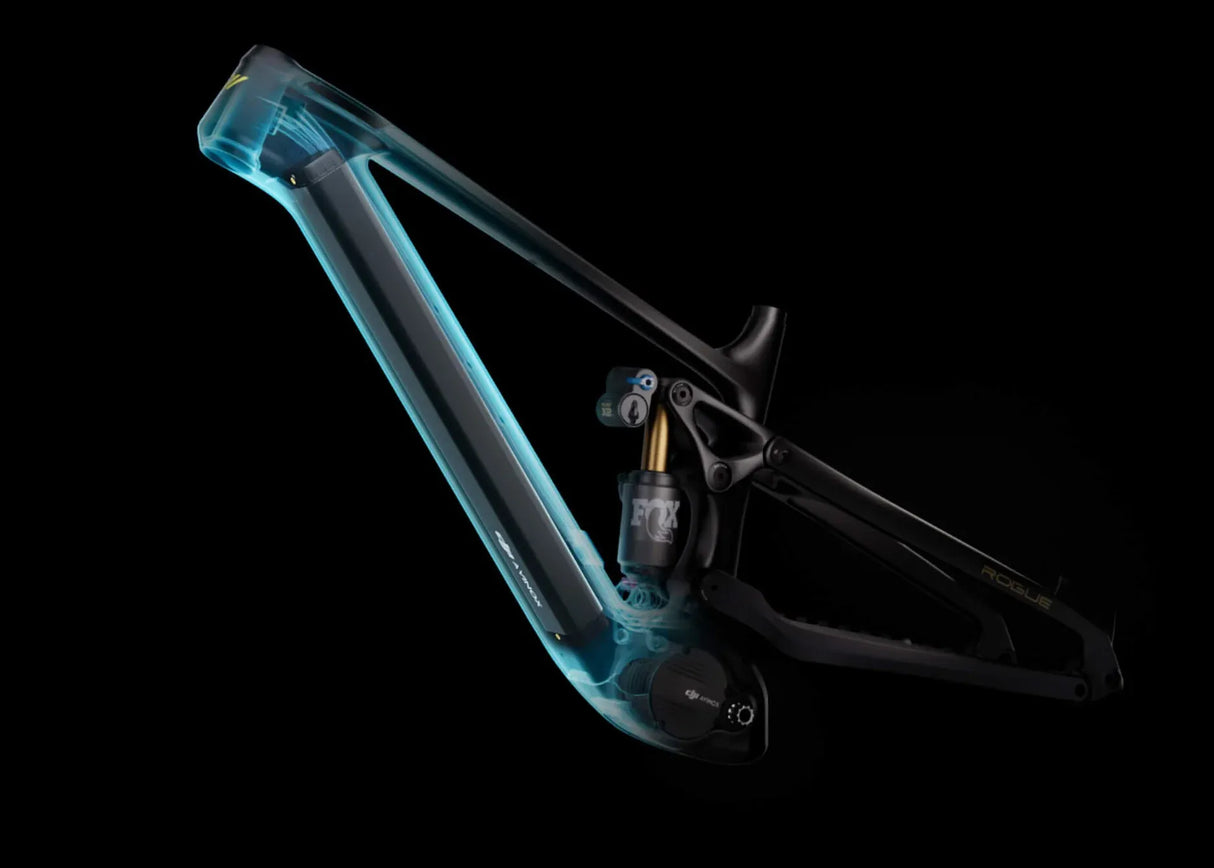

Velduro Rogue Frame - DJI Avinox

Velduro Rogue Frame - Without shock absorber

Build your dream e-MTB with Velduro. Thanks to its modular carbon monocoque frame design with flip chips, the Rogue can be precisely tailored to your riding style and the terrain. Change the suspension travel, fine-tune the geometry, or swap the wheel size – create your very own dream machine.

The I-Track Suspension System with reduced pedal kickback and optimized anti-squat ensures efficient climbing and maximum control on descents. The rear suspension travel can be adjusted via the Shock Flip Chip – up to 5 mm of additional travel is possible (max. 172 mm with a 29" rear wheel).

Thanks to the GeoLock module, the geometry remains constant even when switching between a mullet setup and a full 29er. Head tube angle, chainstay length, and bottom bracket height remain identical – without compromising handling.

In standard mode (170 mm fork / 165 mm rear with MX wheels), the Rogue is a confident all-rounder that effortlessly masters even demanding trails.
The all-mountain mode (160 mm front and rear with MX wheels) delivers a precise, playful riding experience on flowing trails.
When maximum downhill performance is required, the Enduro mode (180 mm front / 172 mm rear with 29″ rear wheel) unleashes full control and stability on steep and technical downhills.

The Rogue is powered by the high-performance DJI Avinox propulsion system in combination with an 800 Wh battery for long tours and maximum range.

Driving modes & configuration

Standard mode: 170 mm front / 165 mm rear, MX wheels
All-mountain mode: 160 mm front / 160 mm rear, MX wheels
Enduro mode: 180 mm front / 172 mm rear, 29″ rear wheel

Highlights

Carbon monocoque frame
I-Track Suspension with optimized anti-squat and reduced kickback
Modular frame design with flip-chip adjustment
Shock flip chip for up to 5 mm additional suspension travel
Mullet or full 29er setup thanks to GeoLock module
DJI Avinox propulsion system
800 Wh battery for long range
Warranty: Frame 5 years | Avinox drive system 2 years

Important instructions

Frame only – rear shock not included.
Custom-tuned shock absorber available separately
